  • Riese & Muller | Delite Mountain Electric | 2017 | Pearl White
  • Riese & Muller | Delite Mountain Electric | 2017 | Urban Grey Metallic
  • Riese & Muller | GT Touring (Image for Color Purposes Only) | 2017 | Solar Orange Metallic
Riese & Müller

Riese & Muller Electric: Delite Mountain - 2017

$6,149.00
Condition:
New
Shipping:
$125.00 (Fixed shipping cost)

 Product Description

Riese & Muller: Delite Mountain Electric - 2017

 The Delite mountain.

 A challenge for every mountain.

 There may be no literal superlative of mountain biking enthusiasm, but the Delite mountain will show you what it looks like. Every performance-driven rider will be amazed by the incredible dynamics of the high-torque Bosch Performance CX motor. Along with the battery and shock absorber, the motor is installed in a particularly low and central position, allowing a level of handling that was previously only possible with un-motorised mountain bikes. Thanks to Control Technology with full suspension, the Delite mountain can conquer any terrain. And by the time you experience the superb traction – even at low speeds – you’ll be lost for words.

 With the lightweight and efficient Shimano Deore XT 11-speed derailleur gear, you’ve always got the best support even on the steepest hills. After all, the proven shifting technology possesses a high degree of efficiency. The control technology with full suspension and mountain bike tires with superb grip ensure more traction and riding pleasure. The hydraulic Shimano Deore XT disc brakes for more safety while riding.

SIZE OPTIONS:

  • 49 cm: Body height 1,65 m - 1,80 m
  • 54 cm: Body height 1,75 m - 1,90 m
  • 56 cm: Body height 1,80 m - 2,00 m

Control Technology

Look forward to the obstacles that line your path.

Only an E-Bike with true full suspension keeps ground contact on poor roads – and keeps you in full control. The active rear swing arm and optimised front wheel suspension form the core of the Control Technology. They ensure better road holding and safety at high speeds and in tricky situations. Vibrations and hard knocks like those experienced on cobbles or kerbs are significantly diminished.

Dual Battery

Twice the range. Twice the riding pleasure.

Riese & Müller is doubling the range of its E-Bikes with dual battery technology – in other words, by adding a second battery. This steps up battery capacity to 1,000 Wh. Using a charger, both batteries can be charged at the same time. Depending on your needs, you can also use just one battery to go on a ride. Its dual battery technology puts Riese & Müller at the top of its class in terms of riding range.

Motor and battery

One drive. This drive.

The Bosch Performance CX motor has been forged from pure passion for the athletic driving style of E-mountain biking. With a high torque of up to 75 Nm, ferocious acceleration and pedal assistance of up to 300%, no mountain will ever be too high again. Even walking, your E-Bike helps out with its pushing aid. The standard Intuvia Display or optional Nyon Display can serve as a control centre with a smartphone charging function. Ultra-modern Bosch lithium ion batteries with a 500 Wh energy reserve or a dual battery with 1,000 Wh provide the power for your adventures.

17-hlf-delite-mountain-beleuchtung-1806.jpg-800x534-q80-crop-subsampling-2-upscale.jpg

Safe and super-bright lighting

A bright future.

Always ride with excellent road illumination thanks to the IQ-X headlamps from busch+müller. Only daylight is brighter than their exceptional brightness of over 100 lux. With its very wide-sweeping and homogeneous large-area illumination of the street, you won’t miss a thing. They are operated via the Bosch display, while the energy is supplied via the battery. The Tail Light from Supernova makes you very easy to see from the rear. At the same time, it is hardly noticeable and very discreetly mounted on the rear disk brake.

17-stf-delite-mountain-flaschenhalter-1801.jpg-460x307-q80-crop-subsampling-2-upscale.jpg

With no holder, there’s no holding back.

The E-Bike features two water bottles, but without a single holder attached. This technical feat is revolutionary. The front cover plate of the frame is equipped with two plastic pegs on each side, both left and right, specially designed for direct mounting of the cageless water bottles from Fabric. It doesn’t get any easier than this when it comes to keeping two bottles within perfect reach during a ride.


Steal success from thieves.

With the optional ABUS Bordo 90 cm folding lock, the bike can be secured to virtually anything. It locks simultaneously with the battery lock, which means you only need one key for your E-Bike. (ABUS Bordo Plus Lock $110)

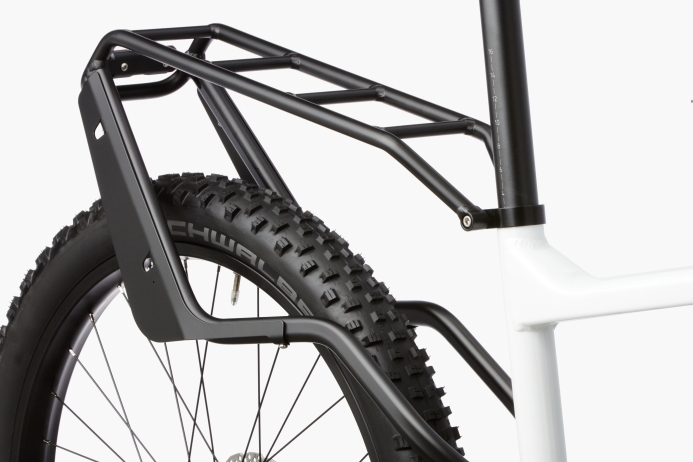

Packed for adventure.

For riders who like not only being off the beaten track but on it too, there's the optional co-sprung luggage carrier. With its superlative stability and suspension, the first-class riding characteristics of the Delite mountain are maintained even with a full load.

SPECIFICATIONS

Frame color

Oyster white, solar orange metallic, urban gray metallic

Suspension fork

Fox Float 34 Performance Boost

Spring element

Fox Float 34 Performance

tax rate

Acros AZX-220, tapered, block lock

Seat post

Satori Trident

Saddle clamp

TranzX, 40.0 mm, QR

tire

Schwalbe Nobby Nic 70-584

Hoses

Swallow SV21F

Wheel rims

Alex MD40, 27.5 "

Spokes

Sapim Leader 2.0 mm, inox

Front hub

Novatec Boost, QR

Rear wheel hub

Novatec Boost, QR

battery pack

Bosch PowerPack 500 Performance, 36 V, 13.4 Ah / 500Wh

motor

Bosch Performance CX, 25 km / h

Display

Bosch Intuvia, Bosch Nyon

pedal crank

FSA / Riese & Müller, 170 mm

Chainring

15T

Chain

KMC X11

cassette

Shimano SLX 11-speed, 11-42

saddle

Ergon SMC4-L gel

Pedals

VP-196 MTB, Alu

circuit

Shimano Deore XT Shadow +, 11-speed

gear lever

Shimano SLX, 11-speed

Handlebar

FSA Afterburner, 31.8 mm

Stem

FSA Afterburner, 90 mm, 6 °

Handles

Hermans Grips

Brakes

Shimano Deore XT, disc brake

Front light

Busch & Müller Lumotec IQ-X

Taillight

Supernova E3 E-Bike Tail Light 2

Luggage carrier

Riese & Mueller

Clamping rubber

Bibia

bell

Billy

Castle

ABUS Bordo Plus

Frame height [cm]

49 cm, 54 cm, 56 cm



FRAME GEOMETRIES

Frame height

49

54

56

Top tube length [cm]

58

61

64

Steering head angle [°]

67

67

67

Seat tube angle [°]

73

73

73

Overtravel [mm]

101

101

101

Wheelbase [cm]

119

122

125

Bottom bracket height [cm]

51

51

51

Top pipe height [cm]

94

95

95

Height of overhang [cm]

102

102

102

Back length [cm]

50.5

50.5

50.5

Wheel size ['']

27.5

27.5

27.5

Control head tube length [mm]

125

135

135

Front spring travel [mm]

120

120

120

Rear travel [mm]

100

100

100

Development [m]

2.05-7.84

2.05-7.84

2.05-7.84

Weight [kg]

23.1

23.2

23.3

Adm. Total weight [kg]

140

140

140

Release of luggage carrier [kg]

20

20

20

Release handlebar / basket [kg]

3

3

3

Child seat release

Yes

Yes

Yes

Trailer release single-track

No

No

No

Trailer release two-lane

Yes

Yes

Yes

Release bike trailer

Yes

Yes

Yes



Bike Data

An E-Bike's control centre is the display. Four levels of pedal assistance can be set, as well as the pushing aid, using its control unit. Intuvia The standard Intuvia display provides information about the battery charge level, range, kilometres travelled and speed, for example.
Nyon

The Nyon display, alongside the E-Bike controls, also features a sat nav system, a fitness trainer and its functions can be extended with apps. (Nyon Upgrade: +$350)

Battery (Dual Battery Upgrade: $769)

Petrol in the blood. Current in the tank.

Ultra-modern Bosch lithium ion batteries with a 500 Wh energy reserve provide the power for our E-Bikes. The battery capacity of 1,000 Wh is achieved by means of their dual battery technology, which makes use of a second battery. This technology doubles the range, which, however, depends on numerous factors, such as the pedal assistance level set, the pace or the inclination of the route. The integrated range calculator provides more detailed information. The batteries are charged directly on the E-Bike or, once removed, at any standard wall socket. In a partially discharged state, they can be recharged without any “memory effect”. The lifespan is 800 – 1,000 charging cycles.

Folding lock (ABUS Bordo Plus Lock $110)

Steal success from thieves.

With the ABUS Bordo 90 cm folding lock, your e-bike can be securely fastened to virtually anything. If you want to continue your journey, it can be compactly folded up, disappears into a pouch and is Velcro-fastened to the bicycle frame. The lock, with its ultra-secure articulated design, weighs just 1,120 g and clicks shut simultaneously with the battery lock.


Carrier (Carrier Delite Rack: $143)

Packed for adventure.

Even with our sportiest E-mountain bike, you’re not always out trying to exert yourself. Whether for tours, biking trips or shopping in town, the carrier can be more than just convenient. With its superlative stability and its suspension, the first-class riding characteristics of the Delite mountain are maintained even with a full load. And if you want to go on a sporty ride again, you can very easily remove the carrier at any time.



*Note: Images shown may differ from configuration of your purchase, depending on add-ons, optional equipment and/or upgrades. Images shown to display variable color and/or style options.
