  • Easy Motion Electric | Atom X 27.5 + Pro RC | 2018
Easy Motion

Easy Motion Electric: Atom X 27.5 + Pro RC - 2018

$4,799.00
Condition:
New
Shipping:
Free Shipping

 Product Description

Easy Motion Electric: Atom X 27.5 - 2018



  • Patented BH frame with integrated battery creates clean frame lines.
  • BH SPLIT PIVOT technology on full suspension Lynx 5 and Lynx 6.
  • Brose S Mid Drive Motor.
  • 720Wh Integrated Battery.
  • Head Up Color Display.



FEATURES

Fork • Fox 34 Float Rhythm with 100mm of travel 15 QR
Motor • Brose Mid Drive S – 250W
Derailleur • Shimano Deore XT 10-Speed
Chainring • FSA
Brakes • Shimano Hydraulic disc with 180/180mm rotors
Tires • Schwalbe Nobby Nic 27.5 x 2.8
Battery • 720Wh
Size • MD / LG



ATOM X - A NEW DEFINITION OF E-MTB



A true XC/Trail worthy hardtail ready to tackle the sprints, climbs, and adventure you're willing to join it on.  With 720wh of “get there and get back”, 100mm of FOX FLOAT suspension up front, BROSE S power, and sure footed 27.5 X 2.8 treads, this is your faithful go anywhere but the couch friend.

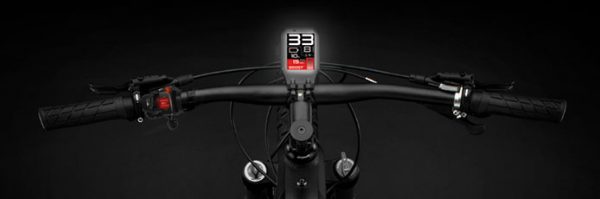

LCD COLORED INTEGRATED HUD - Head up display




256 MB transflective LED color display



The display is located ahead of the stem (“Head Up Display”) and allows the rider
to maintain proper frontal vision while riding.


The position of the HUD ensures better situational riding anticipation versus a traditional lateral or behind the handlebar positioned displays.
It is housed in an aluminum frame to provide superior protection.



Compatible for use with Garmin HPO systems.

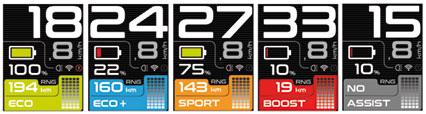

Instant Power Options




ERGONOMIC LED CONTROLLER



The ergonomic remote controller on the handlebar incorporates LEDs that offer visual indicators. A built-in vibration motor offers tactile feedback to the user.






PATENTED INTEGRATED BATTERY SOLUTION

The ATOM X solution integrates the battery into the down tube. It is based on an innovative patented system which allows the user to ergonomically access the battery from the top of the bike, using an easy opening and closing lever system.

The ATOM X built-in battery incorporates the new 21700 cells, which offers the highest energy capacity on the market (5 Ah).

This allows the ATOM battery to achieve a total capacity of 720 Wh contained in a compact down tube design, providing the potential for 90 miles of range.








The external charging port is located conveniently on the upper section of the battery and is easily accessible to the user.

The battery protection system incorporates an electronic lock which is activated through the use of a Smart Key Bracelet. This technology is housed within a stylish, sportive and fully waterproof rubber bracelet that includes an identification code specific to each individual bike.

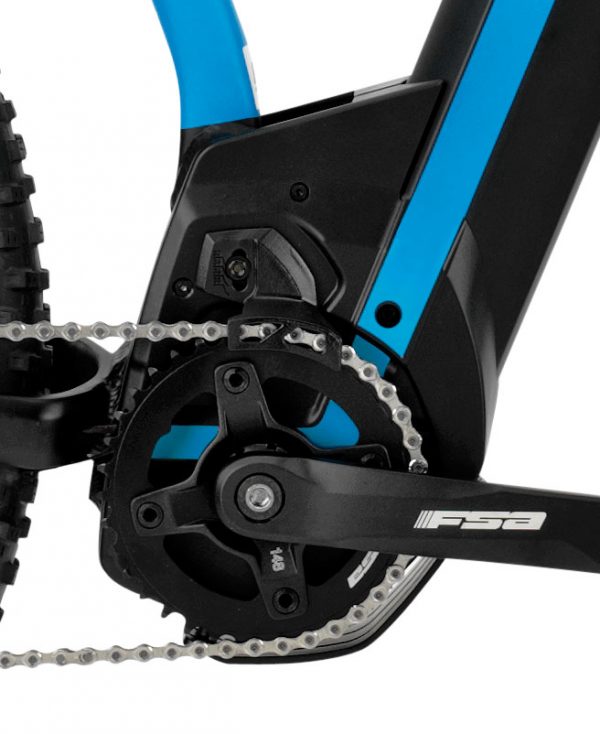

BROSE S MID DRIVE MOTOR

The ATOM X is powered by the Brose S central motor, with 15% more torque for a cadence of between 60 and 90 rpm. Developed for high performance and maximum power for use in competition. It offers great sensitivity and response on technical terrains.



The Drive S motor has a triple sensor and efficiency of between 75% and 82% depending on the speed, and a maximum torque of 105 Nm.



Composed of magnesium and aluminium parts with a carbon belt, the Brose S is a lightweight and quiet motor.






The motor is integrated into the frame with minimal visual impact and a low center of gravity.



The motor offers no resistance in «no assistance» mode.



SPECIFICATIONS

 Drivetrain Shimano Deore XT 10-Speed
 Motor Brose Mid Drive S – 250W
Battery 720Wh
 Voltage 36V
 Range Up to 90 miles
Top Speed 20MPH
 Tires Schwalbe Nobby Nic 27.5 x 2.8



 Fork Fox 34 Float Rhythm with 100mm of travel 15 QR
 Shock NA
 Throttle No
 Adjustable Stem No
 Display Head Up Colored Display
 Brakes Shimano Hydraulic disc with 180/180mm rotors
 Weight 51 lbs
 Warranty 2yrs (5yrs with registration)
 MSRP $4,799.00
